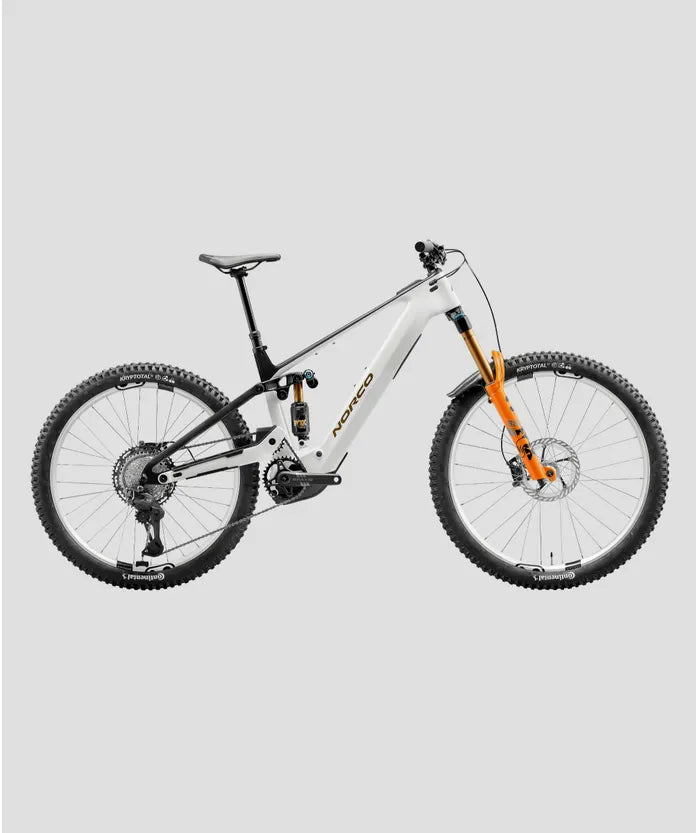

Norco Range VLT CX C1
Norco Range VLT CX C1
Charge the steeps all day on a bike that makes rough terrain feel natural - and the climbs just as fun as the descents.
With 170/160 mm of travel, Range VLT CX is the big burly brother of the Sight made to take on the steepest trails with ease. A high torque, efficient motor and large battery capacity combined into a much lighter package, without sacrificing a full power motor, it's the anti-shuttle, enduro rig for people who live for the descents.
Eat up rough terrain with confidence.

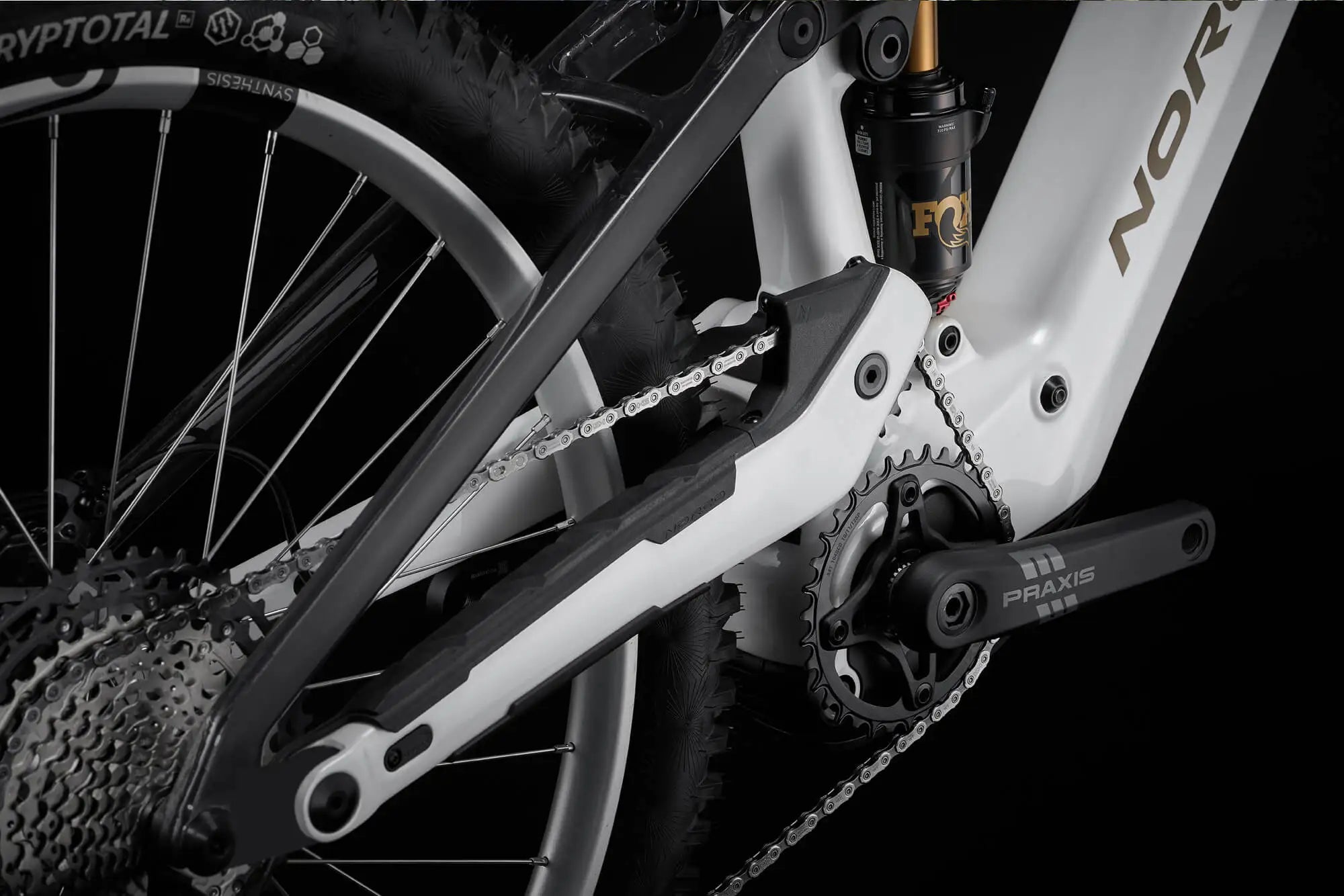

The innovative VPSHP suspension layout has an increased rearward axle path for stability at speed through rough terrain—and comes alive the faster you go. Go ahead, blur your vision, point it, and get a little loose because the dirt’s that good. High pivot smooths everything out and has your back so you can get wild. With an idler to handle chain growth, Range VLT CX has minimal pedal kickback and will surprise you with how good a long travel bike can feel charging uphill.
Maximum control and handling for the steeps.
Range VLT CX focuses on balance, encouraging riders to push their limits and trust in their bike’s abilities. With enduro-focused geometry, it has front-end confidence that meets exceptional directional control to shred the steeps with no hesitation. Size-specific rear centres give uncompromised kinematics across sizes, and tailored chainstay lengths for each frame size with a mixed wheel setup to ensure optimal weight balance and handling.
SPECIFICATION
| FRAME | Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ |
| FORK | Fox 38 Factory Float, Grip X2, HSC / LSC / LSR, 170mm, 44mm Offest, Fender Included |
| REAR SHOCK | FOX Factory Float X2, 205x65mm TR,HSC/LSC, HSR/LSR 2 pos-Adj |
| HEADSET | No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 ) |
| GRIPS | WTB Wavelength, 130mm Length |

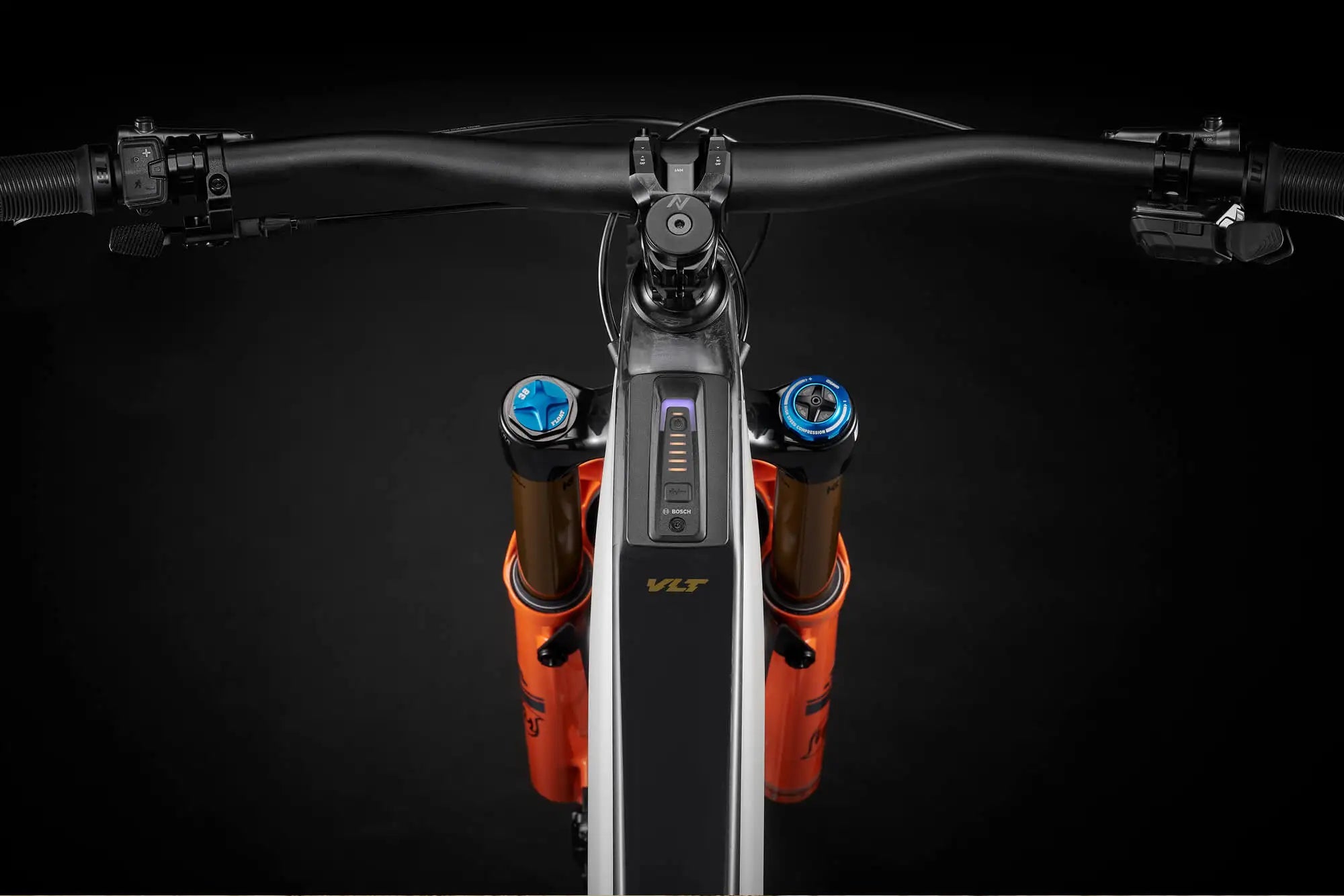

| HANDLE BAR | Norco 6061 DB Alloy, 800mm, 25mm |
| STEM | Norco Alloy, 40mm Length, 35mm Clamp |
| SEAT POST | TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5) |
| SEAT POST CLAMP | Norco Alloy Nutted Clamp, 34.9mm ID |
| SADDLE | Fizik Terra Aidon X5 |
| FRONT BRAKE | Shimano XT M8220 4-P, Metallic pads |
| FRONT BRAKE ROTOR | Shimano RT-MT905, 203mm, 6-Bolt |
| REAR BRAKE | Shimano XT BL-M8200 |
| REAR BRAKE ROTOR | Shimano RT-MT905, 180mm, 6-Bolt |
| BRAKE LEVERS | Shimano XT BL-M8200 |
| SHIFTER REAR | Shimano Deore XT Di2 SW-M8250-IR, 12sp |
| REAR DERAILLEUR | Shimano Deore XT Di2 RD-M8250, SGS, 12sp |
| CASSETTE | Shimano Deore XT CS-M8200-12, 10-51T, 12sp |
| CHAIN | Shimano Deore XT CN-M8100, 12sp |

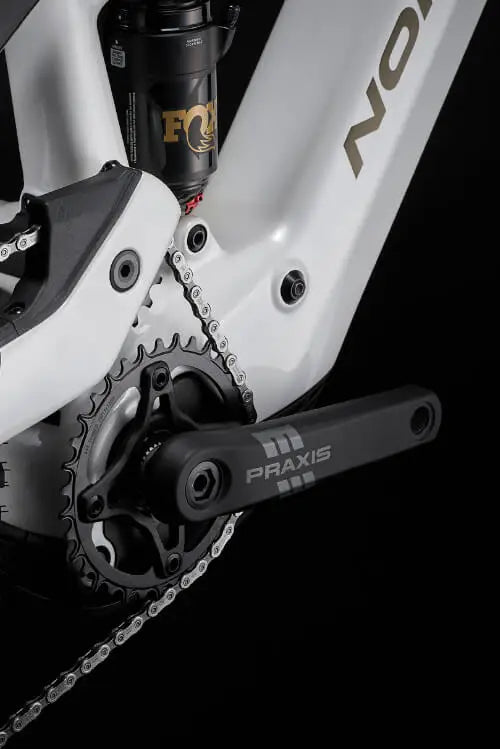

| CRANKSET | Praxis HD Aluminum Bosch Cranks, 34T, 160mm |
| FRONT HUB | Crank Bros. Synthesis Enduro, 15x110mm Boost, 32h, 6-Bolt |
| REAR HUB | Crank Bros. Synthesis Enduro, 12x148mm Boost, Micro Spline, 32h, 6-Bolt |
| SPOKES/NIPPLES | Sapim D-Light (front), Sapim Race (rear) |
| RIMS | Crank Bros. Synthesis Alloy, F- 31.5mm 28h, R- 29.5mm 32h, 29"-27.5 F/R |
| FRONT TYRE | Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable |
| REAR TYRE | Continental Kryptotal-R, Enduro, Soft, 27.5" x 2.4", Foldable |

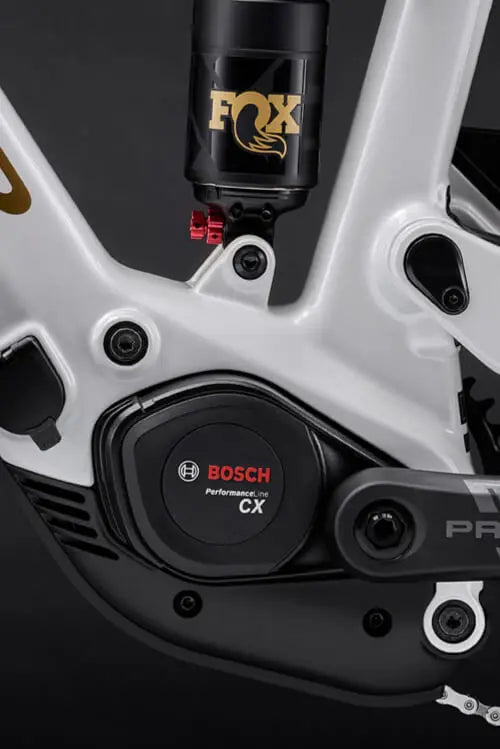

| DRIVE UNIT | Bosch Performance Line CX, 100 Nm / 750W |
| BATTERY | Bosch PowerTube 800 Wh |
